R5

• Frame Material: High Carbon Steel
• Suspension: Full suspension system
• Folding Mechanism: Yes (with listed folded dimensions)
• Seat Height: 33" adjustable
• Handlebar: Adjustable with lock function

• Tires: 20" x 4.0" puncture-resistant fat tires
• Inner Tubes: 20" x 4.0"
• Brakes: 180mm hydraulic brakes (front and rear)

• Motor: 750W rear hub (1000W peak) with 85Nm torque

Battery:

• 48V 20Ah (960Wh) LG cells
• Weight: 12 lbs
• Waterproof rating: IP65

• Controller: 48V with 18-20A current limit
• Charger: 48V 3A fast charger (5-6 hour charge time)
• Display: Color LCD screen (IP65 waterproof)

Drivetrain:

• Shimano 7-speed derailleur
• 48T crankset with 170mm arms
• 114-link chain

• Pedals: 9/16" aluminum alloy

Light

LED, headlight and taillight

Kickstand

Alloy

Rear Rack

Included, Max Load: 120 lbs

• E-bike Weight: 78 lbs (35.4kg) without battery
• Total Weight: 90 lbs (41kg) with battery
• Package Weight: 102 lbs (46.3kg)
• Payload Capacity: 400 lbs (180kg)

Dimensions:

• Unfolded: 69.3" x 22" x 50" (176 x 56 x 127 cm)
• Folded: 37" x 25" x 36" (94 x 64 x 91 cm)
• Packing Size: 148 x 31 x 73 cm

• R5S E-bike ×1
• 48V20Ah Battery ×1
• Color LCD Display ×1
• 48V 3A Charger ×1
• Assembly Tools ×1 set
• Pedals ×2
• Keys ×4
• User Manual ×1
• Rear seat + backrest ×1 set
• Rear passenger footrest ×1 pair
• Front fender ×1
• Rear fender ×1

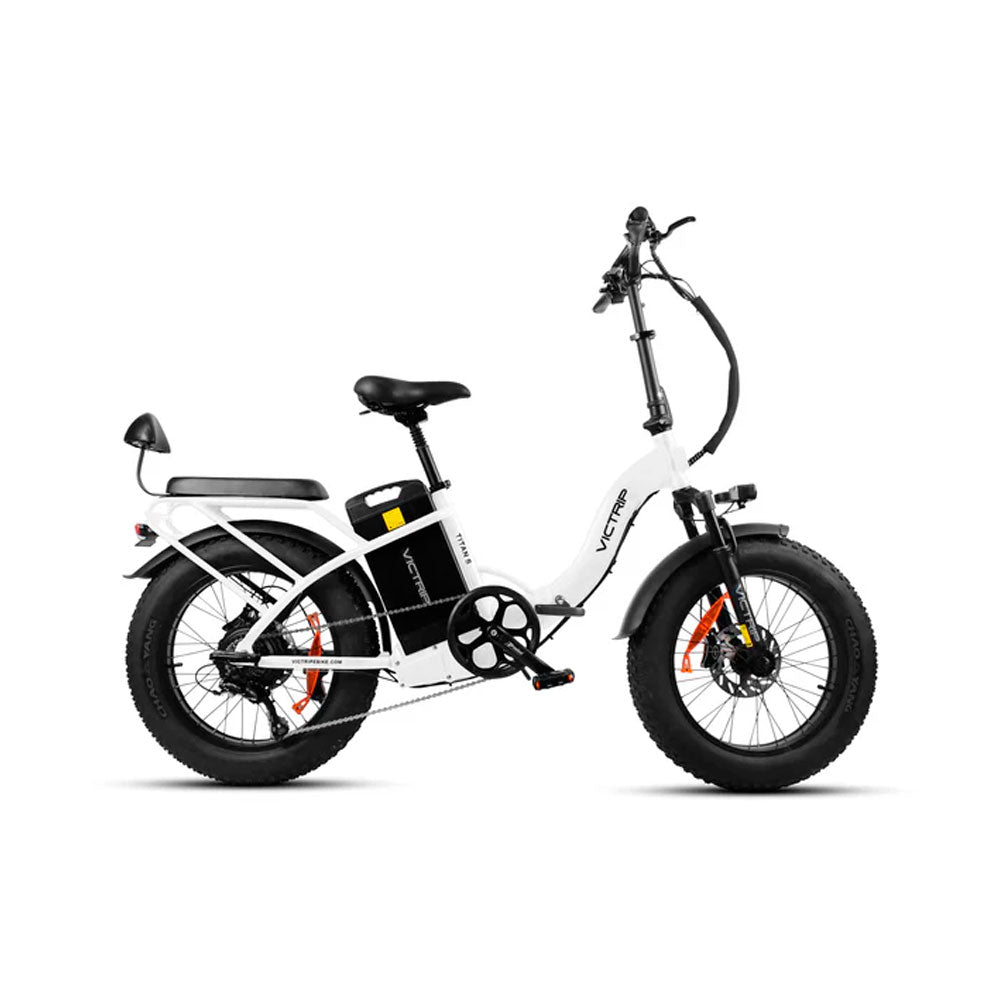

R5S is a low-step design, suitable for the elderly and women wearing skirts, making it easier to get on and off the bike. R5 is a medium-step design, suitable for men and cross-country riders. Except for the difference in step design, the other functions of the two are the same.

The R5 features one-piece wheels, which are stronger, more durable, and offer superior load capacity compared to traditional spoked wheels.

If you prioritize low maintenance, high durability, and excellent shock absorption, one-piece wheels are the perfect choice for city commuting, long-distance riding, and rough terrains. They provide a hassle-free experience with outstanding riding comfort.

R5 ebikes are designed for off-road use on rugged, unpaved surfaces with their wide and fat tires. These surfaces include dirt trails, gravel roads, grass, sand, and light snow. They can handle rougher terrains better than bikes with narrow road tires, but may still struggle on very technical mountain trails. R5 is also suitable for all-season use.

The R5 series is a comprehensive upgrade to the JANUS 2.0, offering a more refined and superior riding experience. Key improvements include a front and rear suspension system for exceptional comfort and stability, along with three stylish color options: black, white, and orange. The 20-inch one-piece 10-blade aluminum alloy wheels ensure durability and improved handling. Additional upgrades feature a rear seat cushion, a passenger backrest, and foldable passenger footrests for added convenience. The R5 is equipped with an upgraded high-beam front light, a premium leather half-turn throttle, and a large LED display, delivering unmatched safety, control, and style for riders.

Total weight of R5 folding ebike is 102 lbs: the bike weight is 78 lbs, the battery weight is 12 lbs.

The recommended rider height for R5 is 5'3" ~ 6'5"; The total payload capacity of R5 is 400 lbs (not including the bike weight).

R5 can be folded and stored in a car trunk. Its folded dimensions are 37*25*31 inch, and its unfolded dimensions are 69.3*22*50 inch.

Though Victrip e-bikes are designed to handle wet conditions, please keep in mind that riding in heavy rain may affect battery life and reduce traction, so exercise caution and avoid riding in the rain as much as possible. As for the waterproof level, the whole bike meets IPX4 standards; the motor, battery, and display meet IP64 standards.

The R5 is partially assembled. You have to install some parts by yourself, such as the front wheel, handlebar, saddle, pedals, and fender. You can download the R5 user manual or look at theassembly videofor help.

To open the R5, you need to insert the key into the keyhole at the bottom of the frame and the right side of the handlebar at the same time, and rotate it clockwise 1 circle.
