The T5S's efficient brushless sine wave motor delivers 80Nm of torque, easily tackling 30-35° slopes. Its LG 48V 15Ah hidden lithium battery provides up to 80km of range per charge, perfect for long-distance riding. Designed for stability and comfort, the low-profile frame, wide tires and front suspension ensure a smooth ride on any terrain. Whether in the city or off-road, the T5S delivers power, style and an exhilarating ride.
Both the front and rear are equipped with 20'' x 4.0'' twelve-blade integrated front and rear wheels. This design concept implies a focus on stability and durability. It is suitable for occasions with high requirements for strength and stability. It can easily conquer flat roads, mountain roads, snow, and gravel roads, and has better grip.
Frame: High Carbon Steel
Inner Tubes: 20" x 4.0"
CHAIN: 120 Segments
CRANK SET: 52T*165MM
PEDALS: 9/16, Aluminium

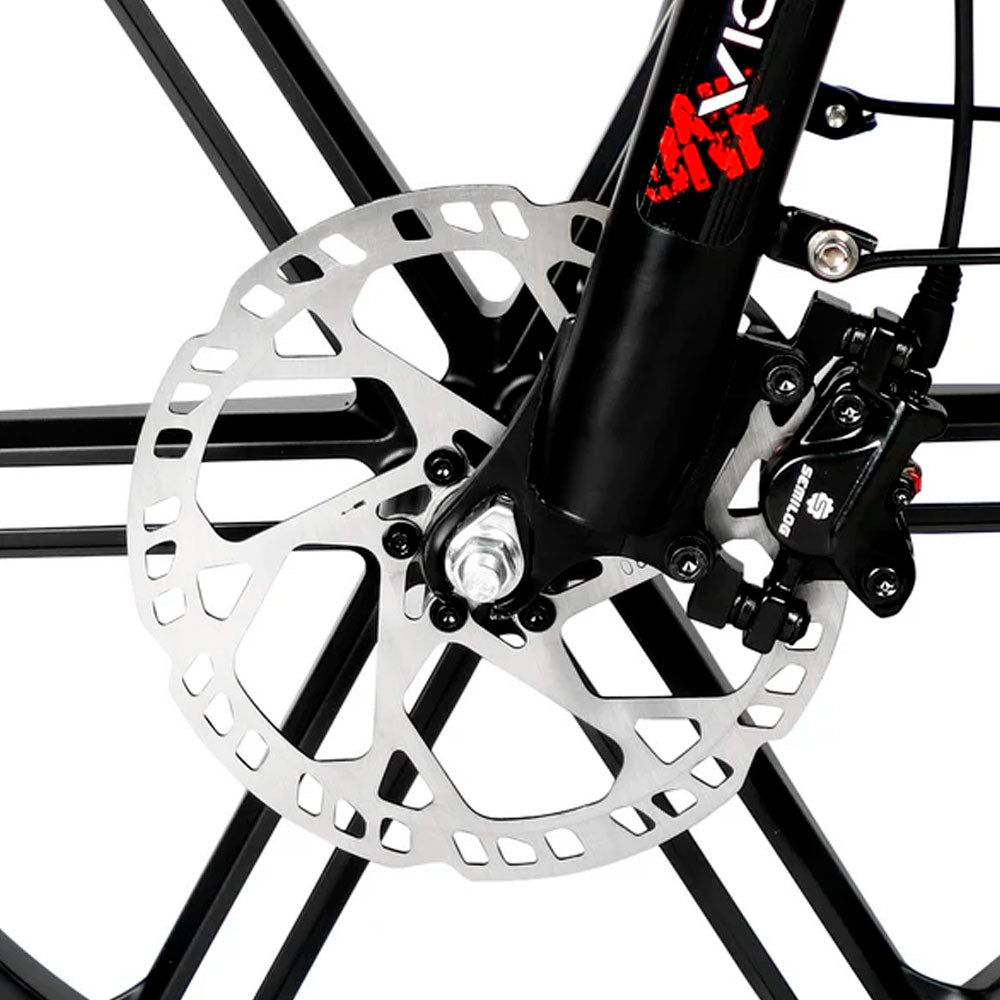

BRAKES: 180*2.3T front and rear hydraulic brakes
EBIKE Weight: 67lbs(No batteries included)
Battery Weight: 9.7lbs
Package Weight: 92lbs
Packing Size: (LengthxWidthxHeight)
148*28*69cm
Rider Weight Limit: 400lbs
Recommended Rider Height: 5'3"-6'5"
Seat Height: 28"-39"
48V15Ah (720Wh)
48V3A

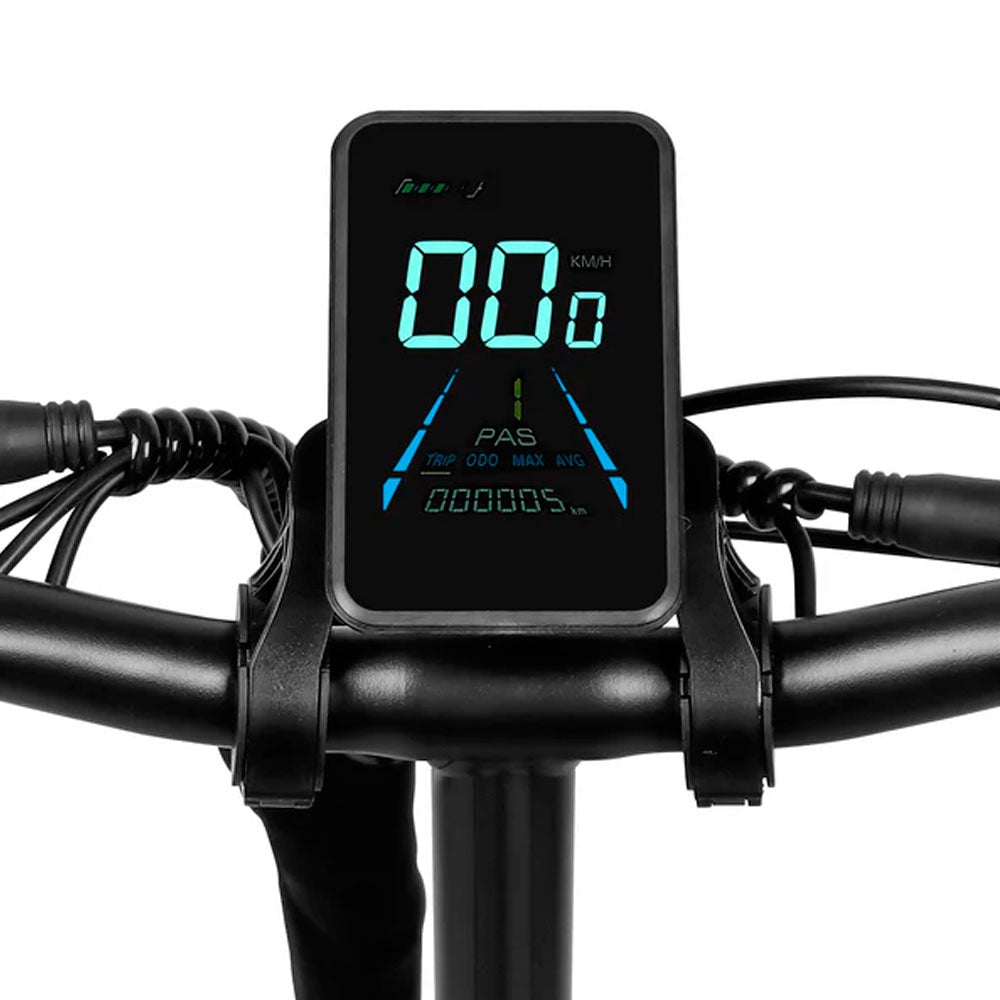

LCD Display
Shimano 7 speed
31kg / 67 lbs
Maximum total weight limit (combined weight of rider and cargo) of 400 pounds (180kg).
41*25*33 inch
69.3*22*50 inch

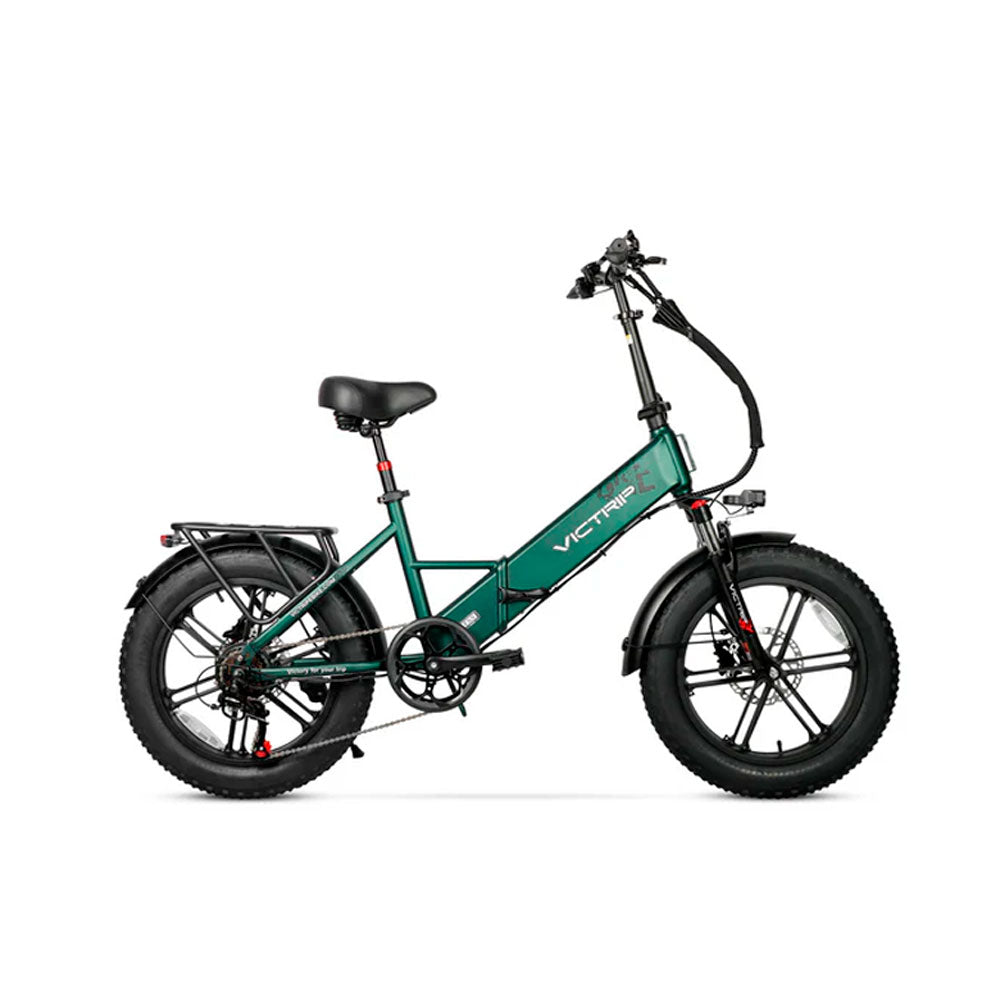

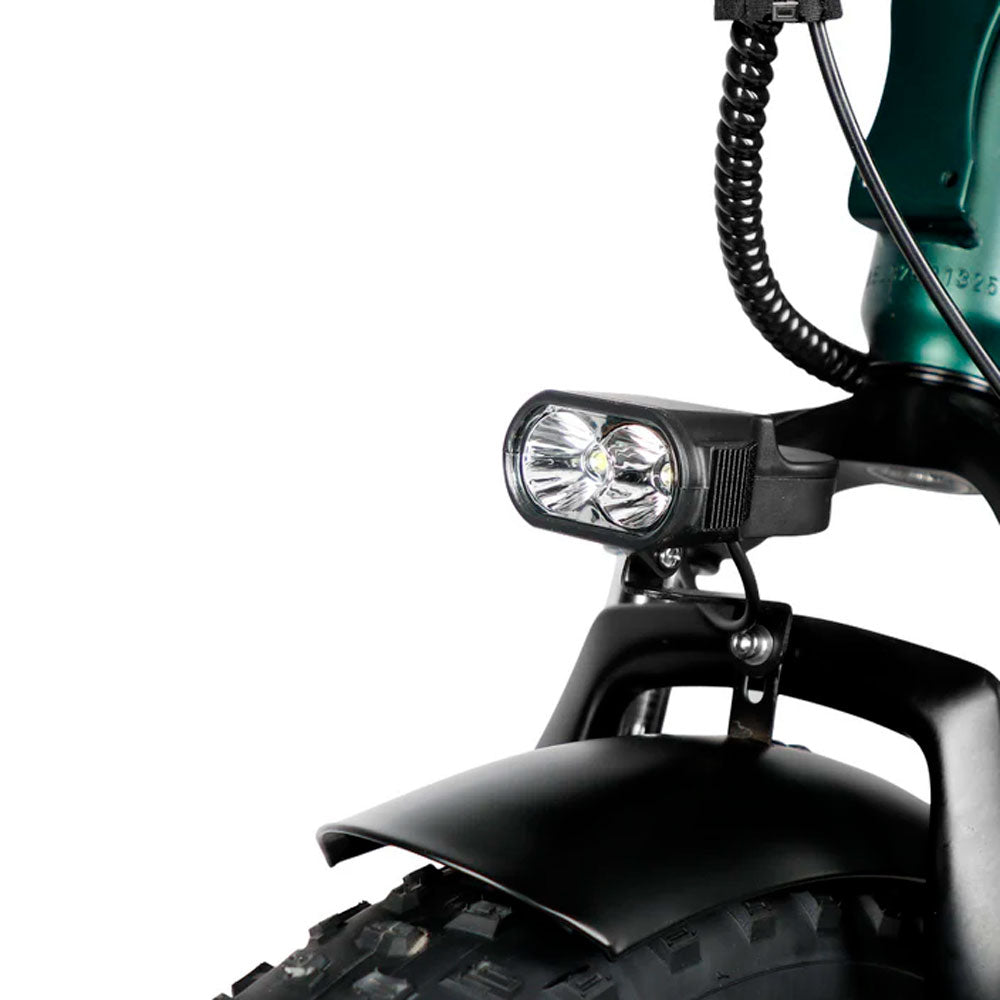

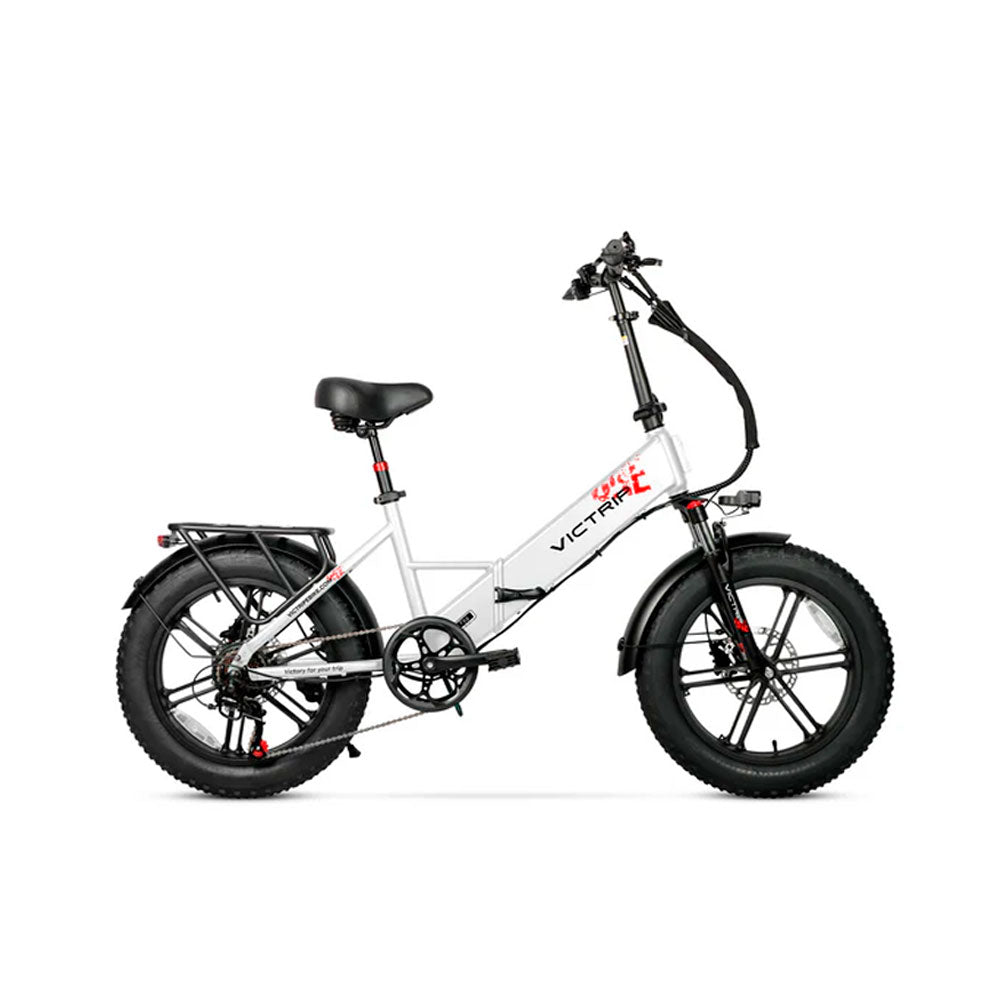

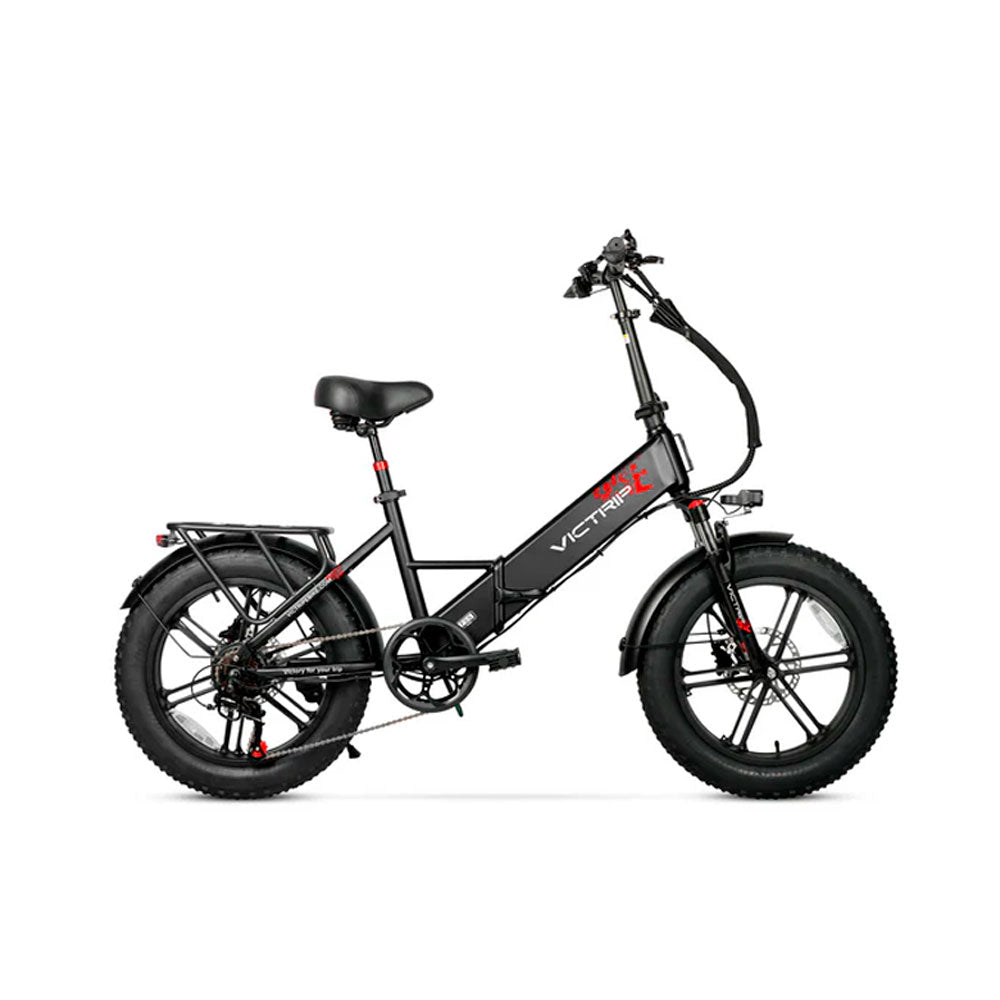

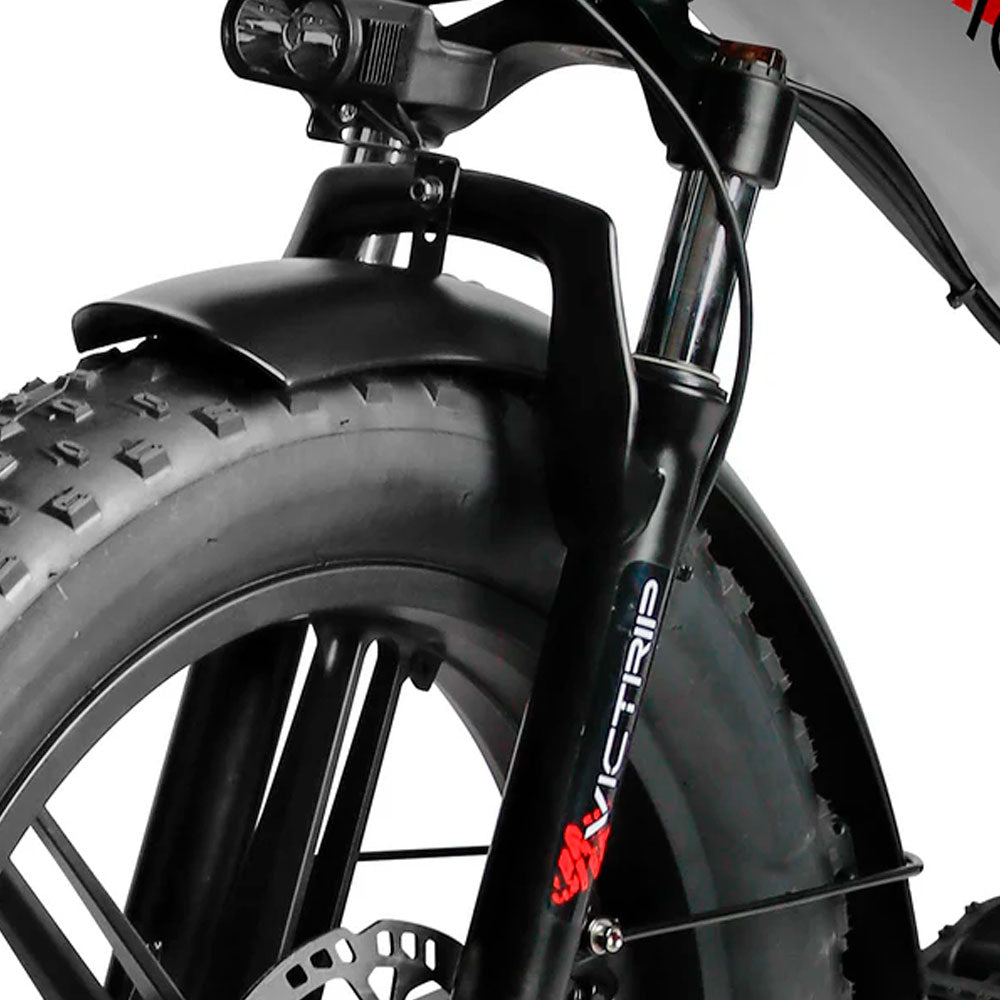

The T5S has been fully upgraded to provide a more refined and superior riding experience. Major improvements include a thicker saddle and a stable front suspension system, as well as three stylish color options: green, black and white. 20-inch 12-piece front and rear wheel set aluminum alloy wheels ensure durability and better handling. Equipped with an upgraded high-beam headlight, premium leather half-turn throttle and LED display, the T5 provides riders with unparalleled safety, control and style.
S
T5S is a low-step design, suitable for the elderly and women wearing skirts, making it easier to get on and off the bike. T5 is a medium-step design, suitable for men and cross-country riders. Except for the difference in step design, the other functions of the two are the same.
Total weight of T5S folding ebike is 92lbs: the bike weight is 67 lbs, the battery weight is 9.7 lbs.
The recommended rider height for T5S is 5'3" ~ 6'5"; The total payload capacity of T5 is 400 lbs (not including the bike weight).

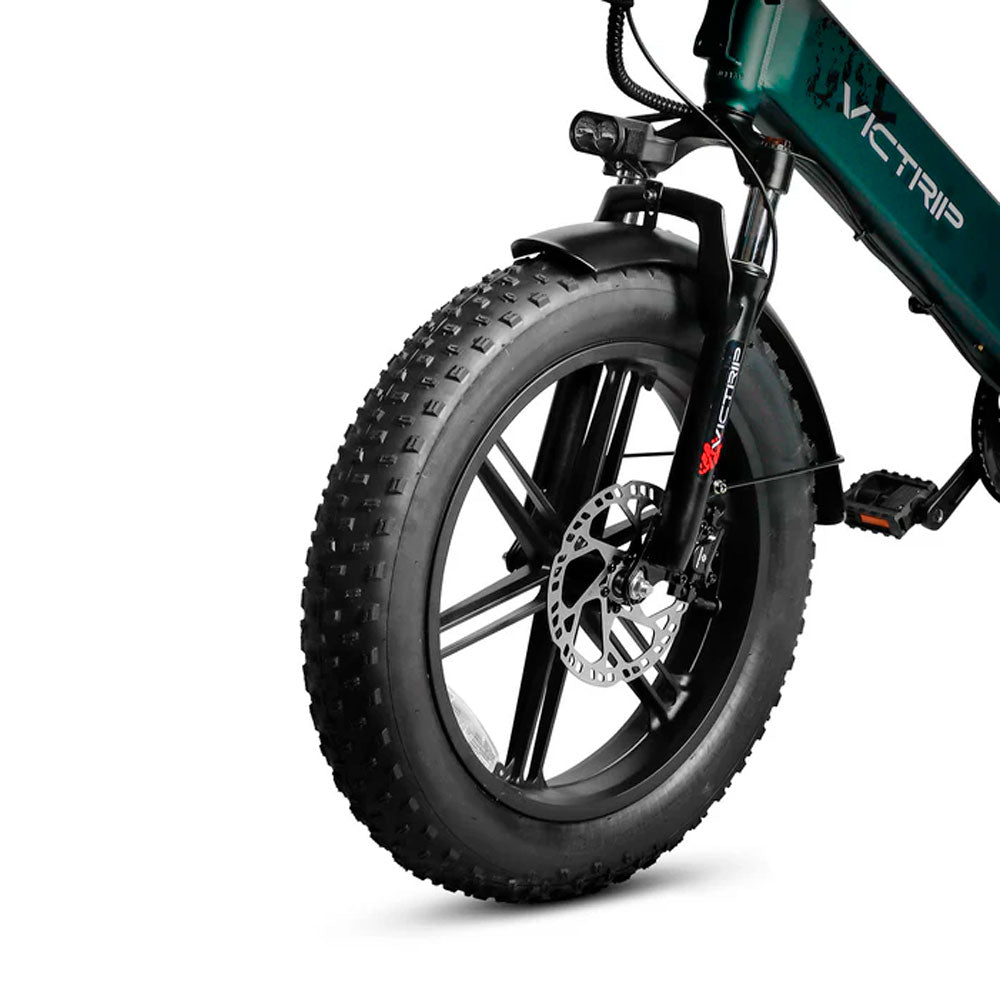

The T5S features one-piece wheels, which are stronger, more durable, and offer superior load capacity compared to traditional spoked wheels.
If you prioritize low maintenance, high durability, and excellent shock absorption, one-piece wheels are the perfect choice for city commuting, long-distance riding, and rough terrains. They provide a hassle-free experience with outstanding riding comfort.
T5S ebikes are designed for off-road use on rugged, unpaved surfaces with their wide and fat tires. These surfaces include dirt trails, gravel roads, grass, sand, and light snow. They can handle rougher terrains better than bikes with narrow road tires, but may still struggle on very technical mountain trails. T5S is also suitable for all-season use.

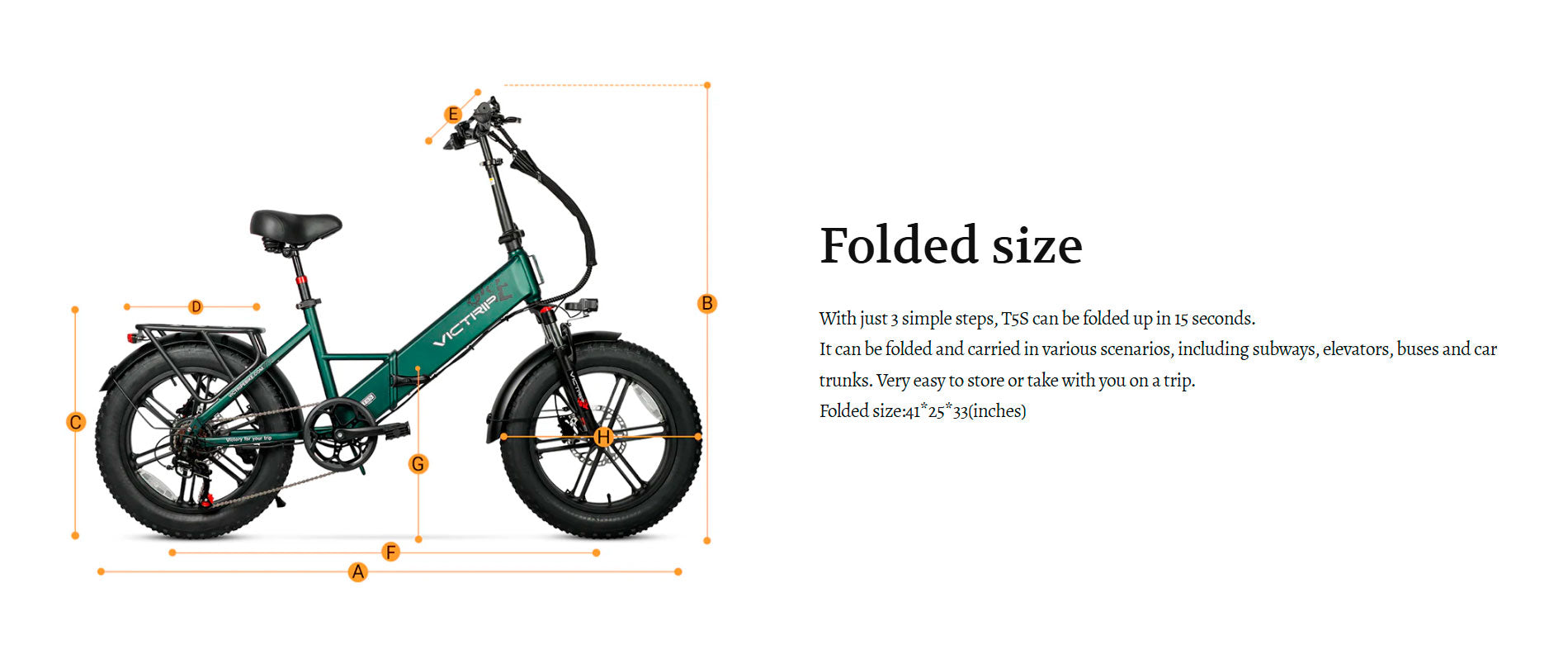

T5S can be folded and stored in a car trunk. Its folded dimensions are 41*25*33 inch, and its unfolded dimensions are 69.3*22*50 inch.
Though Victrip e-bikes are designed to handle wet conditions, please keep in mind that riding in heavy rain may affect battery life and reduce traction, so exercise caution and avoid riding in the rain as much as possible. As for the waterproof level, the whole bike meets IPX4 standards; the motor, battery, and display meet IP64 standards.
The T5S is partially assembled. You have to install some parts by yourself, such as the front wheel, handlebar, saddle, pedals, and fender. You can download the T5S user manual or look at theassembly videofor help.
