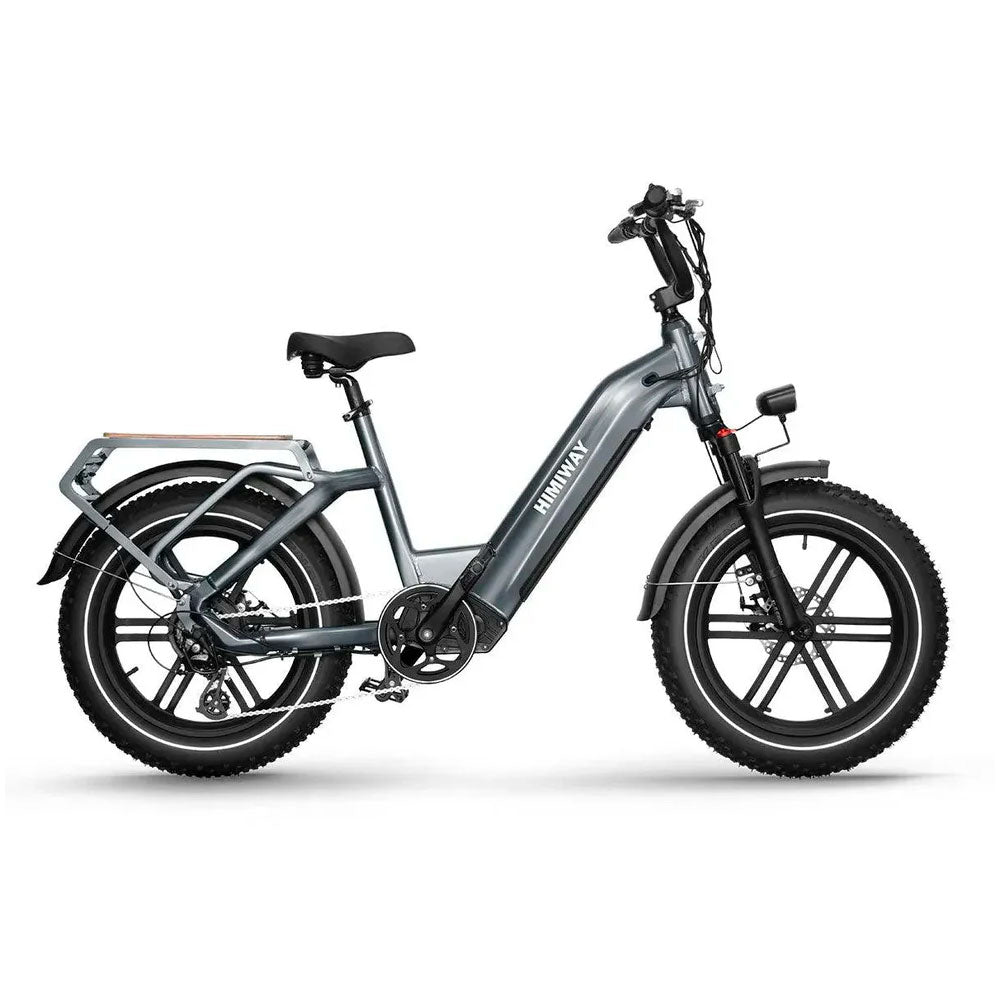

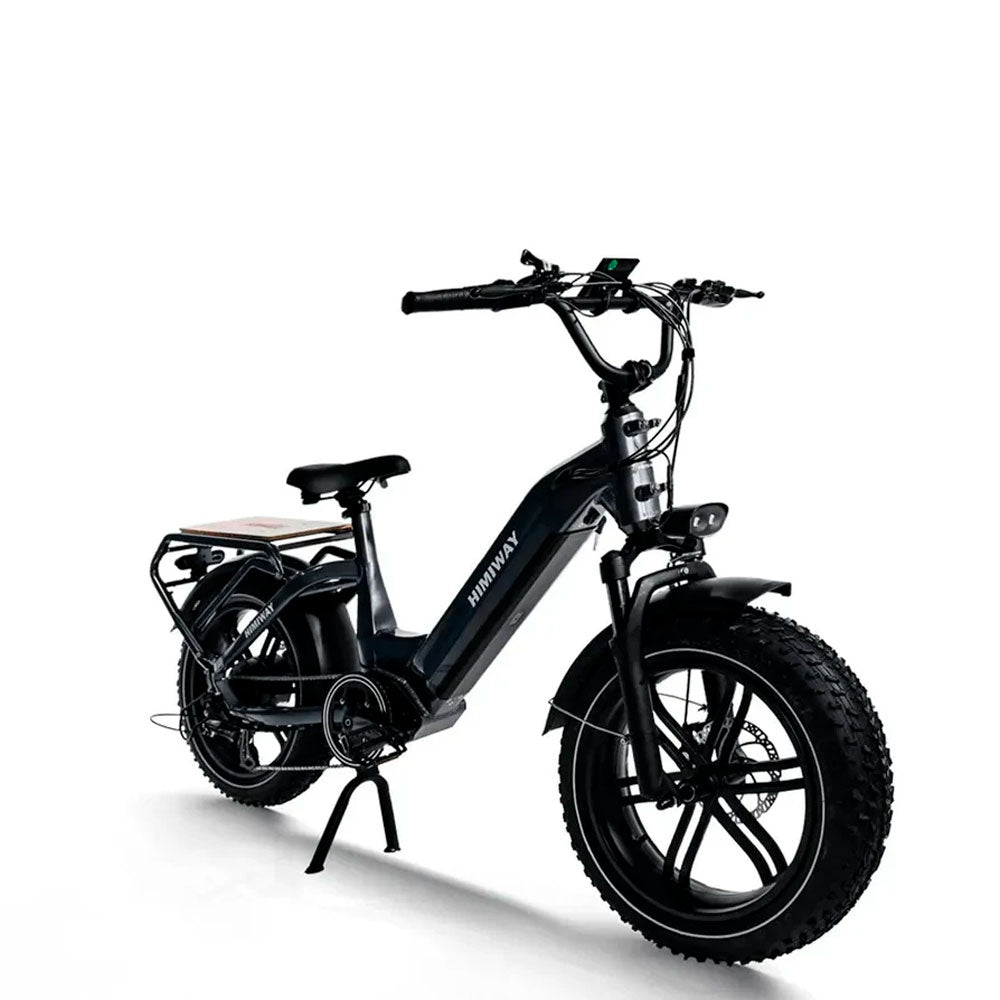

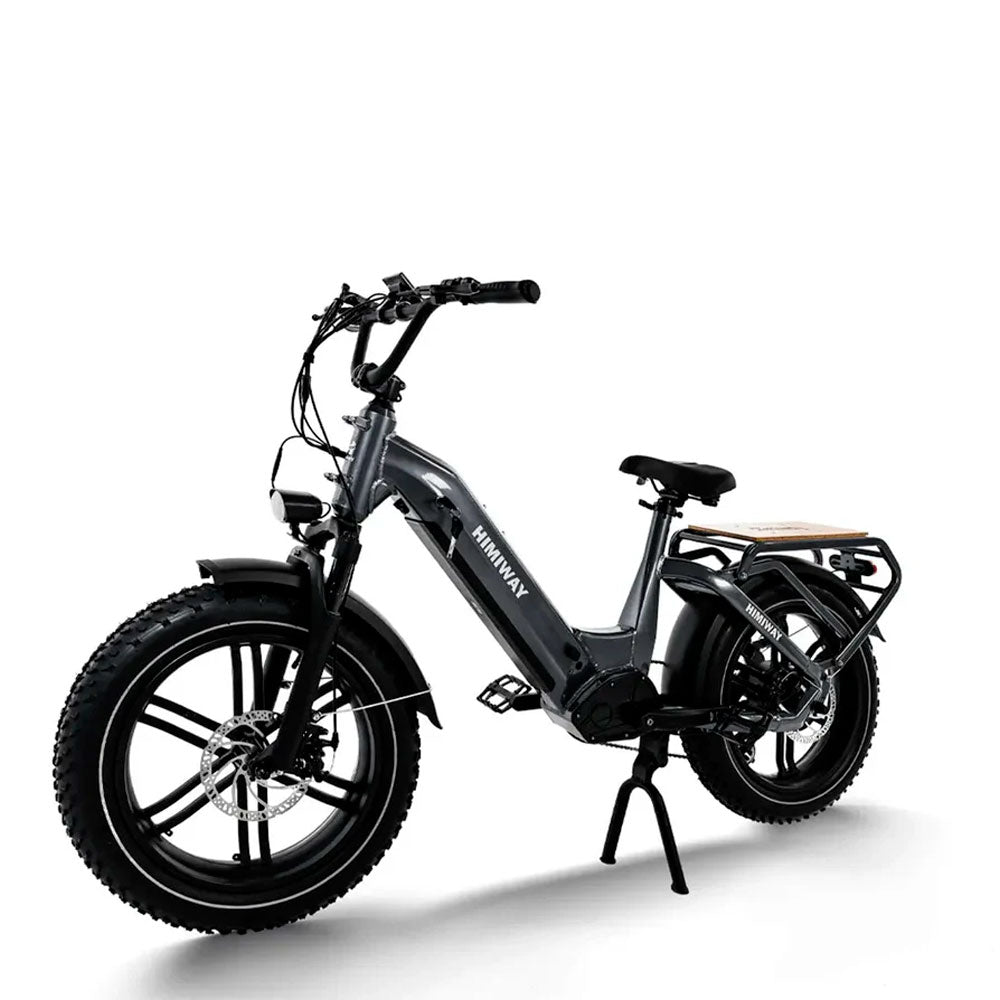

Himiway Big Dog

£1,920.00

Hurry Up! Only 100 Left in Stock!

Himiway Big Dog

400 lbs

With an impressive 400 lbs payload capacity, the Himiway Big Dog combines a robust aerospace-grade aluminium frame and a low-centre-of-gravity moped design. Enjoy unwavering stability and comfort, even when hauling heavy cargo or passengers.

2X Thicker

Engineered with a 2X thicker aerospace-grade aluminium frame, the Himiway Big Dog delivers unmatched durability and strength. Its reinforced structure and low-centre-of-gravity design ensure superior stability, enabling confident rides with heavy loads or extra payload.

750W Brushless Geared Hub Motor

86Nm Peak Torque

The Big Dog motor uses an updated 750W Brushless Geared Hub Motor and specialized inner ring, which enables high-temperature resistance and better heat dissipation. This inner ring reduces the motor magnets’ attenuation speed, which guarantees longer life expectancy for the motor.

LG Lithium-ion Battery

960Wh Samsung

The Big Dog combines the new 48V 20Ah Samsung/LG Lithium-ion Battery to ensure a long life expectancy and distinguished performance. The single range can be up to 80+ miles per charge on pedal-assist mode and around 60 miles on pure electric power mode.

Extended Rear Rack

Big Dog

The sturdy aluminum rear rack can support loads of up to 120 pounds. You can take a ride with your loved ones, transport your children from school, or transfer some heavy equipment. With Himiway Big Dog, the possibilities are boundless.

LCD Display

Multifunctional

Backlit screen shows speed, mileage, power, and riding mode (Eco/Sport). Features USB charging, fault alerts, and tracks cycling data (distance, calories, ride time) for safety and performance insights. Compact, intuitive, and ideal for everyday cycling.

Rider Reviews

Discover Himiway Big Dog

Technical Specifications

Geometry

Recommended Height 5'1" ~ 6'5"

A – total length 71

B – handlebar height 43.5

C – handlebar length 28

D – wheelbase 46.9

E – wheel diameter/span> 23

F – minimum seat height 21.5

G – maximum seat height

H – chain stay length 17.5

I – frame stack 23

J – frame reach 19.3

K – effective top tube length 26.4

L – head tube length 8.3

M – head angle 71°

N – standover height 18.5

Specification

Frame 6061 Aluminum

Headset Neco A16M 44*44*30

Fork Alloy fork

Shock Alloy front suspension fork with lockout and adjustment

Front wheel Aluminum integrated wheel

Rear wheel Aluminum integrated wheel

Tires Kenda K1188 Krusade 20x4.0

Battery Samsung/LG 48V 20Ah

Motor 750W brushless gear motor

Display LCD display with USB charging

Throttle Half twist throttle

Sensors Cadence sensor丨speed sensor丨brake sensor
Chain ring: 44T, BCD104

Crankset Crank arm: IXF-212FA forged alloy 170mm | Chain ring: 46T

Freewheel Shimano MF-TZ500-7 14-28T

Chain KMC Z8.3-EPT 114L

Groupset Shimano altus M310 7 speed

Front brake Tektro ARIES MD-M300 mechanical disc brakes

Rear brake Tektro ARIES MD-M300 mechanical disc brakes

Rotors Tektro TR180-24 F:180mm R:180mm

Components

Stem MA-5040 28.6*31.8mm

Handlebar YC-B086 22.2*31.8*720mm

Seatpost JY-SP311 34*350mm

Saddle Selle royal A054UE

Pedal Aluminum pedal

Lights 48V LED light

Kicksand Heavy-duty aluminum kickstand

Others

Range 80 miles

Controller 48V/22A

Charger US standard 3.0 A smart charger

Rider height 5'1" ~ 6'5"

Weight 88.6 lb. (with battery)

Max. payload capacity 400 lb.
