G-Force RS ST

• Frame: High-quality 6061 aluminum frame, available in "High-Step" and "Step-Thru" styles.
• Magic Suspension: Full suspension system with six shock absorbers (reduces 90% of bumps).
• Rear Suspension System: Four frame link shocks (two mid-shocks, two rear spring shocks).
• Adjustable Front Fork: High-strength aluminum alloy dual suspension (80mm travel) with hydraulic lockout.
• Telescoping Seat Post: Adjustable and removable for rider height customization.
• Hidden Cable Routing: Integrated into the down tube for a clean design.

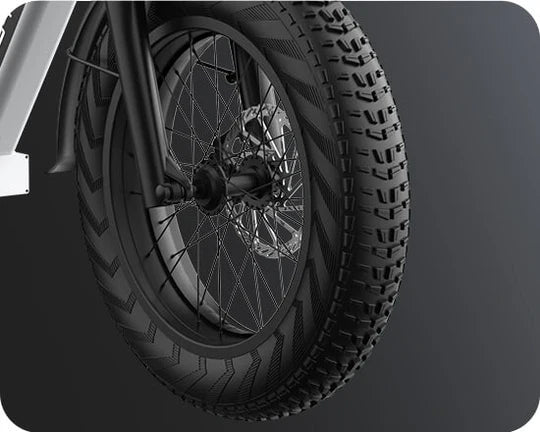

• 20"x4" Fat Tires: Provide traction and stability across all terrains.
• Thru Axle: Tool-free front wheel attachment for precise alignment and stability.

• Semi-Integrated Battery: Removable 48V 15.6Ah/25Ah UL2849-compliant lithium-ion battery (integrated into the down tube).
• Pedal-Assist & Throttle: Five pedal-assist levels + ergonomic Half Twist Throttle (Class 1/2/3 compliant).
• Torque: 85Nm motor output for rough terrain.
• Motor Controller: 22 amp controller for rapid power distribution.
• PAS Sensor: Cadence sensor for seamless power control.
• Drivetrain:
• Brakes: Hydraulic brakes with 180mm rotors (2.3mm thick).
• LCD Display: Backlit, IP65-rated for water/dust resistance.
• Charging: 48V/3.0A charger (5-8 hours), compatible with 100V-240V outlets.

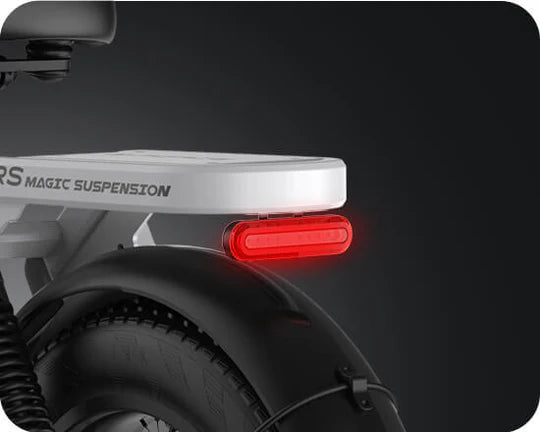

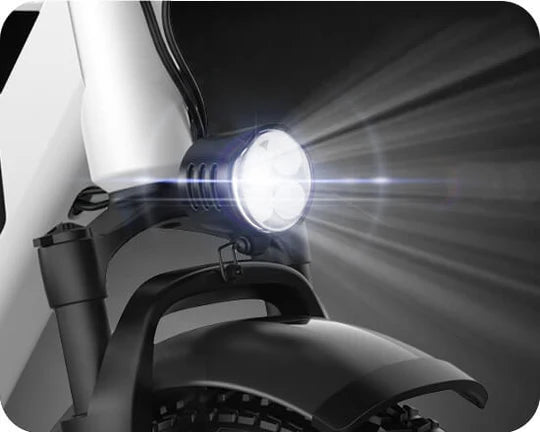

• Safety Lights: Integrated headlight and taillight (battery-powered).
• Grips: Soft ergonomic imitation leather grips.

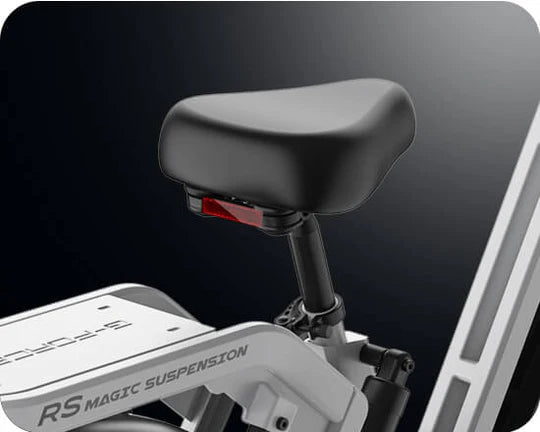

• Saddle: 260x230mm ergonomic seat with rear reflector.
• TitleKickstand: Heavy-duty side-sweeping kickstand.

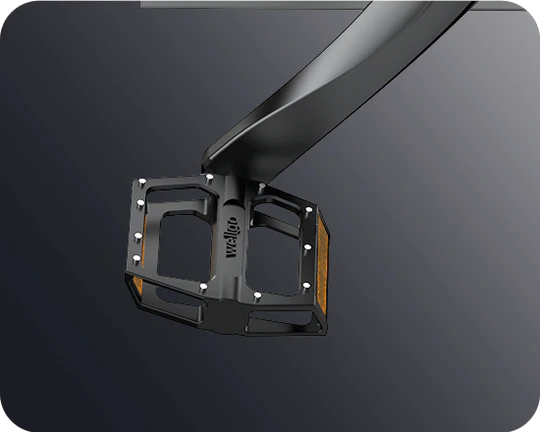

• Removable Pedals: Quick-release design for compact transport.
• One Minute, Tool-Free Assembly: Attach pedals and front wheel via thru-axle.

Weight:

• 15Ah RS: Net 36.5 kg (80.5 lbs), Gross 43.4 kg (95.7 lbs).
• 25Ah RS: Net 37.4 kg (82.5 lbs), Gross 44.3 kg (97.7 lbs).

Dimensions:

• Bike: 70.5" (L) x 42.1" (H) x 26" (W).
• Box: 57.5" x 30.3" x 12.2".

• RS eBike * 1.
• Keys * 1.
• Charger * 1.
• Toolkit Box * 1.

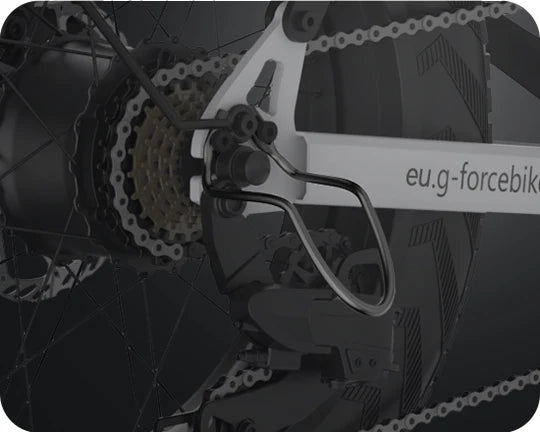

• Rear Derailleur Guard * 1.

The magic suspension system pioneered by G-FORCE consists of two adjustable front fork shocks, two middle shocks, and two rear wheel spring shock absorbers. Magic Suspension is an upgraded version of the full suspension system, with six shock absorbers and 90% bumps reduced, allowing for a smooth and comfortable ride. If the riding you’ll do isn’t so technical, but you know you want more comfort, you’ll be right at home on a Magic Suspension e-bike--G-FORCE RS.

Yes, the key electronic components on our e-bikes are at least IP65 water-resistant. You can feel free to ride our e-bikes in the rain, but please do not leave them idle under the rain for an extended time.

They are designed for off-road use on rugged, unpaved surfaces with their wide, knobby fat tires and Magic Suspension system. This includes dirt trails, gravel roads, grass, sand, and light snow. They can handle rougher terrain than narrow road tires but may still struggle on very technical mountain biking trails. Also rated for all-season use.

Of course! It can be said that the RS Step-Thru model is the most adaptable to women's physical characteristics of all models. This is because it is a tailor-made bike that takes into account women's height and handling ability. The step-through frame makes it easier for women to straddle the bike, and the wider and softer saddle ensures comfortable rides.

Highly recommended! A solid rear rack and front frame mounting bracket ensure super load-bearing capacity and stability, fully covered for camping needs, no matter how much gear you have.

No, the handlebar on this model cannot be raised or lowered but will give you some adjustment in the handlebar angle.
